Do you have a prototype but no blueprint? Need to remake an old part that the OEM doesn’t even have a drawing for, let alone have in stock? What if your ISO 9000 system requires that you define the product you make? Are you in the aftermarket parts business? Do you have a better “mousetrap,” but can’t satisfy the requirements of the Patent Office?

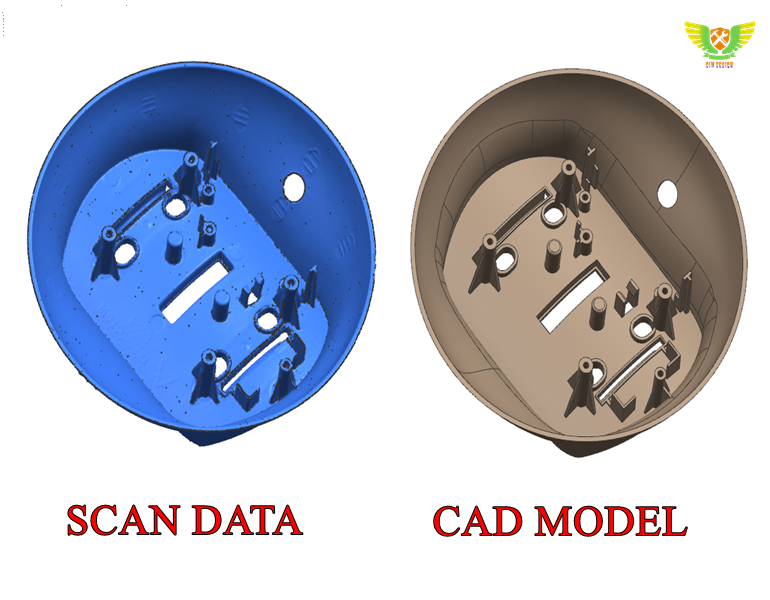

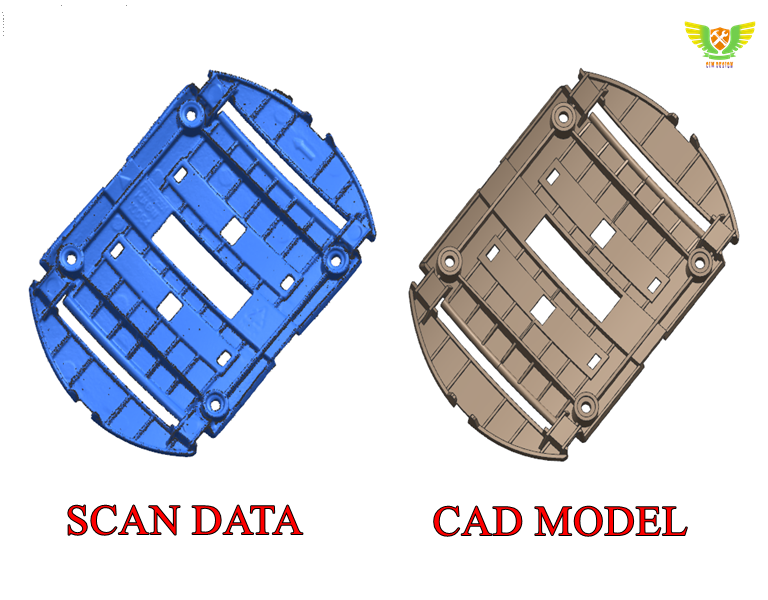

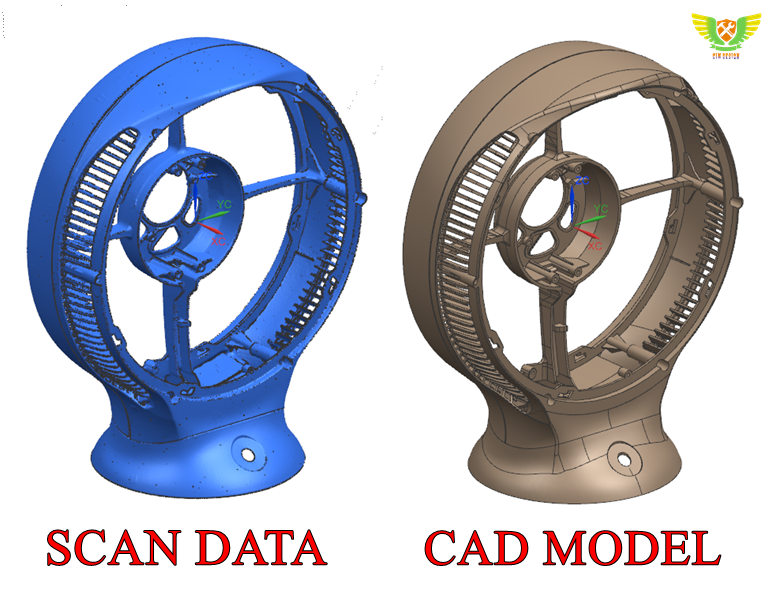

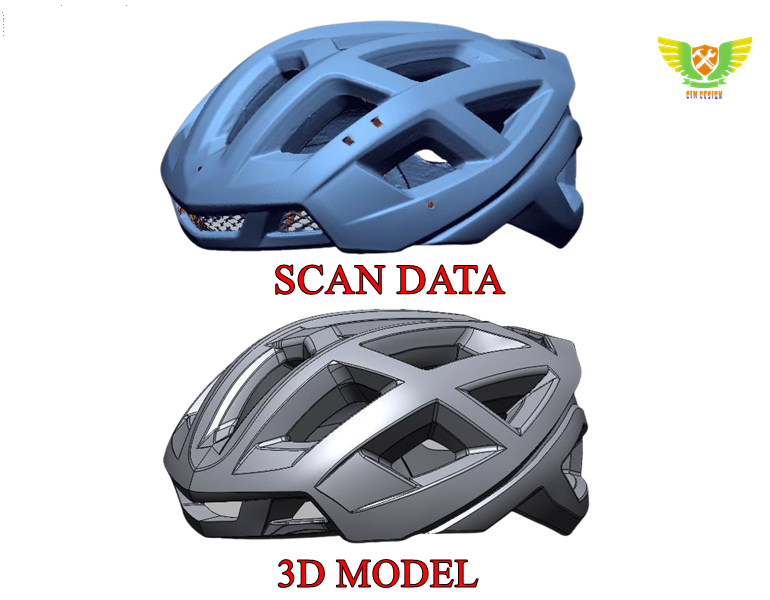

If so, we offer numerous reverse engineering methods and services to define parts or products. Q-PLUS Labs provides everything from raw measurement data to (dimensioned and tolerance) parametric engineering drawings that correspond to a 3D CAD solid model. We also offer reverse engineering design consulting to point you in the right direction.
Software Details
NX+CATIA
60 Days
